The Complete Guide to Iron Melting Point: Understanding Temperature Variations in Pure Iron, Steel, and Cast Iron

Understanding the melting point of iron and its alloys is crucial for manufacturers, engineers, and anyone working in metal processing industries. The temperature at which iron transitions from solid to liquid state directly impacts manufacturing processes, material selection, and product quality. While pure iron melts at a specific temperature of 1538°C (2800°F), the melting points of iron-based materials vary significantly depending on their composition and alloying elements. This comprehensive guide explores the melting characteristics of pure iron, cast iron, and steel, providing essential insights for industrial applications and CNC manufacturing processes.

What is the Melting Point of Pure Iron?

Pure iron, with the chemical symbol Fe, has a precisely defined melting point of 1538°C (2800°F or 1811K). This temperature represents the point at which crystalline iron transforms from its solid state to liquid form under standard atmospheric pressure. The melting process of pure iron is characterized by a sharp transition, meaning the temperature remains constant during the phase change until all solid iron has converted to liquid.

The atomic structure of pure iron plays a fundamental role in determining its melting point. Iron atoms are arranged in a body-centered cubic (BCC) structure at room temperature, which transforms to a face-centered cubic (FCC) structure at higher temperatures before melting. This high melting point makes pure iron suitable for applications requiring exceptional heat resistance, though it's rarely used in its pure form due to its relatively soft nature and susceptibility to corrosion.

Why Pure Iron Has Such a High Melting Point

The exceptionally high melting point of pure iron results from strong metallic bonds between iron atoms. These bonds require substantial thermal energy to break, explaining why iron remains solid at temperatures that would melt many other metals. The strength of these metallic bonds is attributed to the electron configuration of iron atoms and their ability to share electrons in a "sea" of delocalized electrons throughout the metal structure.

Cast Iron Melting Point: Lower Than Pure Iron

Cast iron represents a family of iron-carbon alloys containing typically 3-5% carbon content, along with silicon and other elements. The melting point of cast iron ranges from 1147°C to 1204°C (2100°F to 2200°F), significantly lower than pure iron. This reduction in melting temperature occurs because carbon atoms disrupt the regular crystalline structure of iron, weakening the metallic bonds and requiring less energy to transition to the liquid state.

The carbon content in cast iron exists in two primary forms: as graphite flakes or as iron carbide (cementite). The distribution and form of carbon significantly influence not only the melting point but also the mechanical properties and machinability of the cast iron. Gray cast iron, with graphite flakes, typically melts at the lower end of the temperature range, while white cast iron, containing primarily cementite, melts at slightly higher temperatures.

Types of Cast Iron and Their Melting Characteristics

Different types of cast iron exhibit varying melting behaviors based on their specific compositions:

Gray Cast Iron: With a melting range of 1147°C to 1180°C, gray cast iron contains carbon in the form of graphite flakes. The presence of silicon (typically 1-3%) promotes graphite formation and further reduces the melting point. This type of cast iron is widely used in automotive components, machine bases, and pipes due to its excellent castability and vibration damping properties.

White Cast Iron: Melting between 1180°C and 1204°C, white cast iron contains carbon primarily as iron carbide. The absence of graphite and the presence of carbides result in a harder, more brittle material with a slightly higher melting point than gray cast iron.

Ductile Cast Iron: Also known as nodular cast iron, this material melts at temperatures similar to gray cast iron but contains spheroidal graphite particles. The addition of magnesium or cerium modifies the graphite shape, improving mechanical properties while maintaining relatively low melting temperatures.

Steel Melting Point: Variations Based on Composition

Steel, an iron alloy containing less than 2% carbon, exhibits melting points that vary considerably based on its specific composition. While carbon steel with minimal alloying elements melts around 1425°C to 1540°C, the addition of various alloying elements can significantly alter this temperature range. Understanding these variations is essential for selecting appropriate steel grades for specific applications and processing conditions.

The melting point of steel depends not only on carbon content but also on the presence and concentration of alloying elements such as chromium, nickel, molybdenum, and vanadium. Each element affects the iron crystal structure differently, either raising or lowering the melting point. For instance, chromium and molybdenum tend to increase the melting point, while nickel can have a more complex effect depending on its concentration.

Common Steel Types and Their Melting Points

Carbon Steel: Plain carbon steels, containing primarily iron and carbon with minimal other elements, have melting points ranging from 1425°C to 1540°C. Low carbon steels (less than 0.3% carbon) melt at the higher end of this range, while high carbon steels (0.6-1.0% carbon) melt at lower temperatures due to the carbon's effect on the crystal structure.

Stainless Steel: The melting point of stainless steel typically ranges from 1375°C to 1530°C, depending on the specific grade. Austenitic stainless steels (300 series) containing 16-26% chromium and 8-22% nickel generally melt around 1400°C to 1450°C. Ferritic stainless steels, with higher chromium content but no nickel, tend to have melting points closer to 1500°C.

Tool Steel: High-performance tool steels, containing various combinations of tungsten, molybdenum, vanadium, and chromium, can have melting points ranging from 1400°C to 1500°C. The complex carbides formed by these elements create materials with exceptional hardness and wear resistance, though with slightly reduced melting points compared to pure iron.

Factors Affecting Iron and Iron Alloy Melting Points

The melting point of iron-based materials is influenced by numerous factors beyond simple composition. Understanding these factors is crucial for predicting material behavior during processing and selecting appropriate materials for high-temperature applications.

Chemical Composition and Impurities

Even trace amounts of impurities can significantly affect the melting point of iron. Elements like sulfur and phosphorus, often considered impurities in steel production, can lower the melting point and create localized areas of weakness. Conversely, intentional alloying elements are carefully controlled to achieve desired properties while managing the melting temperature.

The interaction between multiple alloying elements creates complex effects on melting behavior. For example, the combined presence of chromium and nickel in stainless steel creates a synergistic effect that influences not only the melting point but also corrosion resistance and mechanical properties. Understanding these interactions requires sophisticated phase diagrams and thermodynamic calculations.

Pressure and Environmental Conditions

While the melting points discussed typically assume standard atmospheric pressure, variations in pressure can alter these temperatures. Increased pressure generally raises the melting point of iron and its alloys, though the effect is relatively small compared to composition changes. In vacuum conditions, such as those used in some specialized melting processes, the effective melting temperature can be slightly lower due to the absence of atmospheric pressure.

Environmental factors such as the presence of oxidizing or reducing atmospheres can also influence melting behavior. Oxidation at high temperatures can create surface scales with different melting points than the base material, potentially affecting heat transfer and melting uniformity during processing.

Microstructure and Phase Transformations

The microstructure of iron alloys plays a crucial role in determining their melting characteristics. Materials with fine, uniform grain structures may exhibit slightly different melting behaviors than those with coarse or irregular grains. Additionally, the presence of multiple phases, such as ferrite and austenite in steel, creates a melting range rather than a single melting point.

Phase transformations occurring below the melting point can also influence the apparent melting behavior. For instance, the transformation from ferrite to austenite in steel occurs well below the melting point but affects the material's properties and behavior during heating. Understanding these transformations is essential for proper heat treatment and processing of iron alloys.

Industrial Applications and Processing Considerations

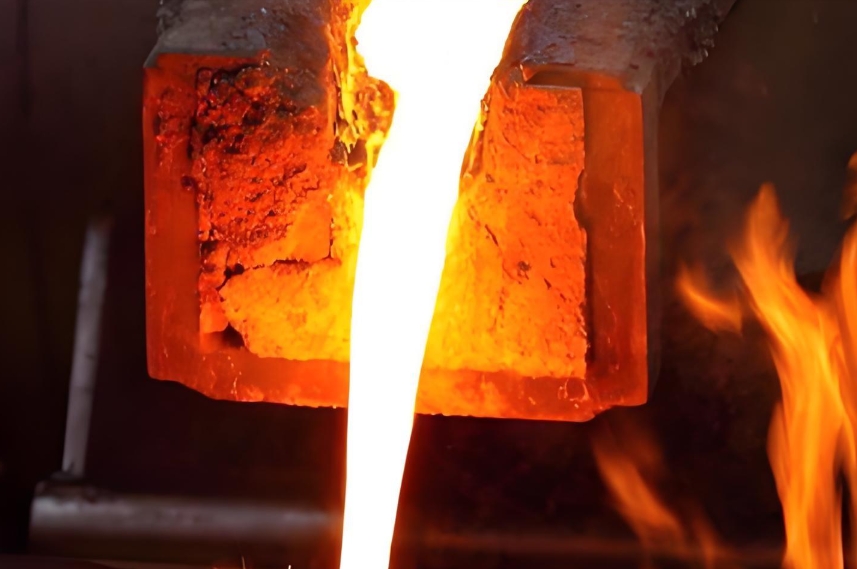

The varying melting points of iron and its alloys have profound implications for industrial processing and manufacturing. In foundry operations, the selection of furnace types, refractory materials, and processing temperatures must account for the specific melting characteristics of the material being processed. Electric arc furnaces, commonly used for steel production, operate at temperatures well above the melting point to ensure complete melting and allow for refining operations.

CNC machining operations must also consider the melting points of materials when selecting cutting parameters. High-speed machining can generate significant heat at the cutting interface, potentially approaching temperatures that cause localized melting or heat-affected zones. Understanding the melting point helps establish safe operating parameters that maintain part quality and tool life.

Heat Treatment and Thermal Processing

Heat treatment processes rely heavily on understanding the relationship between temperature and material properties below the melting point. Processes such as annealing, normalizing, and hardening operate at specific temperatures relative to phase transformation points, which are themselves related to the melting point. For example, austenitizing temperatures for steel are typically 50°C to 100°C above the upper critical temperature but well below the melting point.

The solidification behavior of iron alloys during casting is equally important. The temperature difference between liquidus (complete melting) and solidus (complete solidification) determines the casting characteristics and potential for defects such as hot tearing or segregation. Alloys with narrow freezing ranges generally exhibit better casting properties than those with wide freezing ranges.

Welding and Joining Considerations

Welding processes must carefully manage heat input to create localized melting for joining while avoiding excessive heat that could damage surrounding material. The melting points of base metals and filler materials must be compatible to ensure proper fusion and joint strength. In dissimilar metal welding, differences in melting points can create challenges that require specialized techniques and filler materials.

The heat-affected zone (HAZ) in welding extends beyond the melted region and experiences temperatures approaching but not reaching the melting point. Understanding how material properties change with temperature in this region is crucial for predicting and controlling weld quality, particularly in high-strength steels where HAZ softening can be a concern.

Comparing Melting Points: Pure Iron vs. Alloys

The relationship between pure iron and its alloys demonstrates fundamental principles of materials science. Pure iron's melting point of 1538°C serves as a baseline from which alloying effects can be measured. The addition of carbon to create cast iron reduces the melting point by 300°C to 400°C, while controlled carbon additions in steel result in more modest reductions.

This variation in melting points provides engineers and manufacturers with a range of options for different applications. High-temperature applications may favor low-alloy steels with melting points close to pure iron, while casting operations often benefit from the lower melting points and improved fluidity of cast irons. The ability to tailor melting points through composition control represents one of the key advantages of iron alloys over pure metals.

Economic and Energy Implications

The differences in melting points between iron alloys have significant economic implications for manufacturing. Lower melting points, as found in cast iron, require less energy for melting, reducing production costs and environmental impact. However, this must be balanced against the desired properties of the final product, as lower melting points often correlate with reduced high-temperature strength.

Energy consumption in melting operations represents a substantial portion of production costs in foundries and steel mills. A reduction of 100°C in melting temperature can result in energy savings of approximately 10-15%, depending on furnace efficiency. This economic driver has led to continued research into alloy compositions that balance low melting points with acceptable mechanical properties.

Frequently Asked Questions (FAQs)

Which melts faster, iron or steel?

Steel generally melts faster than pure iron due to its lower melting point. Most steel grades melt between 1375°C and 1530°C, compared to pure iron's melting point of 1538°C. The carbon content in steel (typically 0.05% to 2%) disrupts the iron crystal structure, reducing the energy required for melting. Additionally, steel's lower melting point means it reaches liquid state more quickly when heated at the same rate as pure iron. However, the exact melting speed also depends on factors such as heating method, material thickness, and specific alloy composition.

What is the difference between melting point and boiling point of iron?

The melting point of iron (1538°C) is the temperature at which it transitions from solid to liquid, while the boiling point (2862°C or 5182°F) is where liquid iron vaporizes into gas. This significant temperature difference of over 1300°C means iron remains liquid across a wide temperature range, making it suitable for various high-temperature casting and processing operations. The large gap between melting and boiling points provides a stable liquid phase for metallurgical processes.

How does carbon content affect iron's melting point?

Carbon content has an inverse relationship with iron's melting point – as carbon percentage increases, the melting point decreases. Pure iron melts at 1538°C, but adding just 0.5% carbon can lower this by 10-15°C. Cast iron, with 3-5% carbon, melts between 1147°C and 1204°C, showing a reduction of over 300°C. This occurs because carbon atoms disrupt iron's crystal lattice, weakening metallic bonds and requiring less thermal energy for melting.

Can iron melt in a regular fire?

No, iron cannot melt in a regular wood or coal fire. Typical campfires reach temperatures of 600°C to 900°C, while coal fires might achieve 1000°C to 1200°C under optimal conditions. These temperatures fall well short of iron's melting point of 1538°C. Melting iron requires specialized equipment like blast furnaces, electric arc furnaces, or induction furnaces that can generate and maintain temperatures exceeding 1600°C.

What happens to iron's properties at temperatures below melting point?

Iron undergoes several important changes before reaching its melting point. At 770°C (Curie temperature), iron loses its ferromagnetic properties. Around 912°C, it transforms from body-centered cubic (BCC) to face-centered cubic (FCC) crystal structure. At 1394°C, it reverts to BCC structure. These phase transformations affect mechanical properties, making iron softer and more ductile at high temperatures, which is utilized in forging and hot working processes.
