What is g code in cnc machine
CNC machines have revolutionized the manufacturing industry by enabling precise and automated production processes. At the heart of these machines is _G-code_, a programming language that instructs the machine on how to perform specific tasks.
G-code, or geometric code, is used to control the movements and operations of CNC machines, allowing for the creation of complex parts with high accuracy. Developed in 1958 by the Massachusetts Institute of Technology (MIT), G-code has become the standard language for CNC programming.
The significance of G-code lies in its ability to bridge the gap between human operators and automated manufacturing equipment, enabling efficient and repeatable production processes.
Key Takeaways
* G-code is a programming language used in CNC machines and 3D printing.
* It was developed by MIT in 1958 and standardized later.
* G-code provides instructions for machine tool movements and operations.
* Understanding G-code is crucial for effective CNC machine operation.
* G-code enables automated and repeatable production processes.
Understanding G-Code: The Language of CNC Machines
At the heart of CNC operations lies G-Code, a programming language that bridges human intent and mechanical execution. G-Code acts as a critical interface between the operator and the CNC machine, enabling the precise execution of manufacturing instructions.
Definition and Origin of G-Code
G-Code is a programming language used to control CNC machines. It was developed to provide a standardized way for operators to communicate with machines. The G-Code instructions are written in a format that the machine's control system can understand, allowing for the precise execution of machining operations.
Why G-Code is Essential for CNC Operations
G-Code is vital for CNC machining as it enables operators to provide complex instructions to machines. The key benefits of G-Code include:
* Enabling precise communication between operators and CNC machines, ensuring accurate execution of manufacturing tasks.
* Facilitating the creation of repeatable and consistent manufacturing processes by providing exact specifications for tool movements and operations.
* Allowing CNC machines to produce complex parts with minimal human intervention, thus increasing production efficiency.
By standardizing the language used across different machine types and manufacturers, G-Code has become a universal language in manufacturing, enabling programmers to develop skills that are transferable across various CNC platforms.
How G-Code Works in CNC Machines
The functionality of G-code in _CNC machines_ can be broken down into two primary components: the machine-end process and the operator-end process.

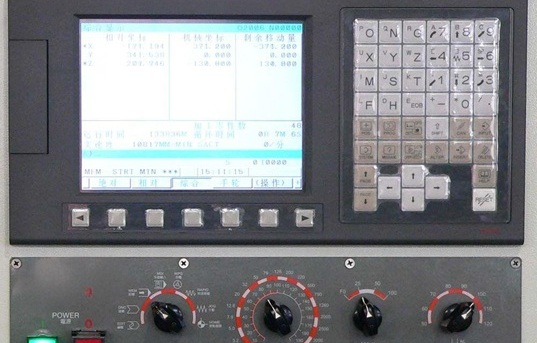

The Working Process at Machine-End
At the machine-end, G-code is executed to control the _CNC_ machine's movements and actions. The code is interpreted line by line, dictating the _tool_ paths and operations. This _process_ involves precise calculations and executions to manufacture the desired part.
The Working Process at Operator-End
The operator-end _process_ begins with creating a design using _Computer_-Aided Design (CAD) software. This design is then processed through Computer-Aided Manufacturing (CAM) software, which generates optimized _tool_ paths and converts them into G-code. Operators can review and modify the G-code using specialized editors, allowing for customization of the _program_ and optimization of the _programming_ for specific requirements.
The Structure and Format of G-Code
Understanding the structure and format of G-code is crucial for optimizing CNC operations. G-code's effectiveness in controlling CNC machines hinges on its standardized syntax and components.
Basic Syntax and Components
The G-code language is composed of a set of letter prefixes that represent specific machine functions or parameters. _G-codes_ are used for primary machine functions such as rapid positioning (G00) and linear interpolation (G01).
The basic syntax involves a combination of letters and numbers that instruct the CNC machine on various operations.
Common Alphabets and Their Representations
G-code employs a range of alphabets to represent different machine functions. For instance, X, Y, and Z letters designate linear movements along the Cartesian axes, while A, B, and C represent rotational movements.
* G: General machine movements
* F: Feed rate
* T: Tool change
* S: Spindle speed
* X, Y, Z: Linear axes in the Cartesian coordinate system
Other common letter prefixes include R (arc radius), I/J/K (arc center coordinates), and N (sequence numbers), all working together to create comprehensive machine instructions.
Types of G-Code Commands
G-Code commands are the backbone of CNC machining, enabling precise control over machine operations. These commands can be broadly categorized into several types based on their functions.
Positioning Commands (G00, G01, G02, G03)
Positioning commands are fundamental to CNC machining, as they dictate how the machine moves. G00 is used for rapid positioning, moving the tool quickly to a specified location. G01, on the other hand, is used for linear interpolation, allowing for precise movement along a straight line. G02 and G03 commands enable circular interpolation, with G02 used for clockwise movements and G03 for counterclockwise movements.
Speed Commands (G93-G97)
Speed commands are critical for controlling the feed rate and spindle speed during machining _operations_. G93, G94, and G95 are used to specify the feed rate in different modes. For instance, G94 sets the feed rate in units per minute. Commands G96 and G97 control the spindle speed, with G96 maintaining a constant surface speed and G97 specifying a constant spindle speed in revolutions per minute.
Machining Operation Commands (G81-G89)
Machining operation commands simplify complex operations by using canned cycles. For example, G81 is used for simple drilling, while G82 adds a dwell time to improve hole quality. G83 is utilized for deep hole drilling with peck drilling cycles to prevent tool breakage. Other commands like G84 for tapping and G85-G89 for various boring operations further enhance machining capabilities.
Reading and Interpreting G-Code
Understanding how to read and interpret G-Code is crucial for working with CNC machines effectively. G-Code is the language that CNC machines understand, and being able to decipher its commands is essential for efficient operation.
Step-by-Step Guide to Reading G-Code
To read G-Code, start by understanding the basic structure of a G-Code program. Each line of the program is a command that instructs the CNC machine on what action to perform. The commands are typically a combination of letters and numbers, where the letter indicates the type of command and the number specifies the value or parameter.
For instance, a command like "G01 X10 Y20" instructs the machine to move to the coordinates (X10, Y20) in a linear interpolation mode. Understanding the modal nature of G-Code commands is crucial, as some commands remain active until changed, while others execute once and then revert.
Modal vs. Non-Modal Commands
G-Code commands are classified into two main categories: modal and non-modal. Modal commands, such as G01 for linear interpolation, remain active until explicitly changed by another command of the same group. Non-modal commands, like G04 (dwell), execute only once and do not alter the ongoing machine state.
* Modal commands establish a persistent machine state, such as linear interpolation mode.
* Non-modal commands execute once without changing the machine state, like pausing movement temporarily.
* Understanding the difference is crucial for efficient programming and precise control over CNC machines.
Practical Examples of G-Code Programming
In the realm of CNC machining, G-Code serves as the primary language that communicates with machines. Understanding its practical application is crucial for efficient CNC operations.
Simple G-Code Program for CNC Mill
A simple G-Code program for a CNC mill involves a series of commands that instruct the machine on how to perform a specific task. For instance, a program might start with a _G21_ command to set units to millimeters, followed by _G90_ to set absolute positioning. The program then specifies the coordinates for the machining operation, such as _G01 X10 Y20 F100_, indicating a linear interpolation to the point (10,20) at a feed rate of 100 mm/min.
Understanding G-Code Blocks and Sequences
G-Code programs are organized into blocks that contain one or more commands. These blocks are executed in sequence from top to bottom, with each command within a block processed from left to right. Understanding this structure is essential for efficient _CNC programming_ and _machining_. By combining multiple commands into a single block, programmers can simplify their code and improve the work flow, making it easier to create complex parts with precise coordinates.
G-Code vs. M-Code: Understanding the Differences
G-Code and M-Code are two fundamental components of CNC programming that serve distinct purposes. While G-Code focuses on the geometric movements and cutting operations, M-Code manages the supporting machine functions.
What is M-Code and Its Functions
M-Code is used to control auxiliary functions of CNC machines, such as spindle rotation, coolant activation, and tool changes. For instance, M03 is used to start the spindle clockwise, while M05 is used to stop it. These codes are essential for the proper execution of machining operations.
How G-Code and M-Code Work Together
G-Codes and M-Codes work in tandem within a CNC program. G-Codes define the toolpath and cutting parameters, while M-Codes control the machine's auxiliary functions. The execution sequence is critical, with M-Codes often preceding G-Codes to ensure the machine is in the correct state before cutting begins.
CNC Machines That Use G-Code
Various CNC machines utilize G-code to perform intricate manufacturing operations with precision. G-code has become an essential component in the operation of these machines, enabling the creation of complex parts with high accuracy.
Milling and Turning Machines
CNC milling and turning machines are among the primary users of G-code. These machines rely on G-code to execute milling and turning operations, creating complex parts for various industries. The precision offered by G-code is crucial in these applications, where accuracy is paramount.
Grinding and Drilling Machines
G-code is also used in CNC grinding and drilling machines, where it controls the grinding and drilling processes. This ensures that the parts produced meet the required specifications and tolerances. The use of G-code in these machines enhances their capability to produce high-quality parts.
3D Printers and Other Applications
Beyond traditional CNC machines, G-code has found applications in 3D printing and other manufacturing technologies. 3D printers use G-code to control the print head's movement, material extrusion rates, and other parameters. Additionally, G-code is used in laser cutting machines, water jet cutters, and plasma cutters, demonstrating its versatility across different manufacturing processes.
* G-code controls the movement and operation of various manufacturing machines, including 3D printers.
* In 3D printing, G-code manages not only the print head's movement but also material extrusion and other process-specific parameters.
* The use of G-code in different manufacturing technologies creates a unified programming approach.
This unified approach allows skills to transfer between various machine types, making G-code a valuable skill for engineers, architects, and hobbyists. As manufacturing technology continues to evolve, G-code remains relevant by adapting to new processes.
G-Code Editing and Simulation Tools
G-Code editing and simulation tools are crucial for ensuring the accuracy and efficiency of CNC _programs_. These tools allow programmers to verify and optimize their G-Code before running it on actual CNC machines, thereby reducing the risk of errors and potential damage.
Popular G-Code Editors
Several G-Code editors are available, catering to different needs and preferences. Some popular ones include software that offers advanced features like syntax highlighting, code completion, and simulation capabilities. For instance, _CNC Simulator Pro_ is a well-regarded tool that provides a comprehensive environment for editing and testing G-Code.
Benefits of Using G-Code Simulators
G-Code simulators offer numerous benefits, including:
* Providing a virtual environment to test and verify CNC _programs_ before running them on actual machines, significantly reducing the risk of crashes, tool breakage, and workpiece damage.
* Offering visual representation of tool movements and material removal, allowing programmers to identify potential issues like rapid moves through material, incorrect tool paths, or collisions.
* Accurately modeling machine kinematics, tool geometries, and workholding setups, providing realistic previews of how the _program_ will execute on specific machine configurations.
By utilizing G-Code simulators, CNC operators can save valuable machine time, optimize _programs_ for efficiency and safety, and improve overall productivity.
Conclusion: The Future of G-Code in Manufacturing
G-code programming remains a vital skill in modern manufacturing due to its precision and control. G-code has been the backbone of CNC manufacturing for over 60 years, and its reliability and universality have allowed it to stand the test of time. As we move towards Industry 4.0, G-code is evolving to incorporate real-time feedback, adaptive control, and integration with production monitoring systems.
The future of G-code will likely involve enhanced integration between CAD/CAM systems and machine controllers, making it easier to work with complex manufacturing operations. While alternative programming methods have emerged, G-code continues to provide the precision and control needed for intricate _parts_ and complex workpieces.
For manufacturing professionals, understanding G-code is crucial for effective troubleshooting, optimization, and customization of manufacturing processes. As CNC machines continue to advance, the fundamental language of G-code will remain essential for producing high-quality parts.
