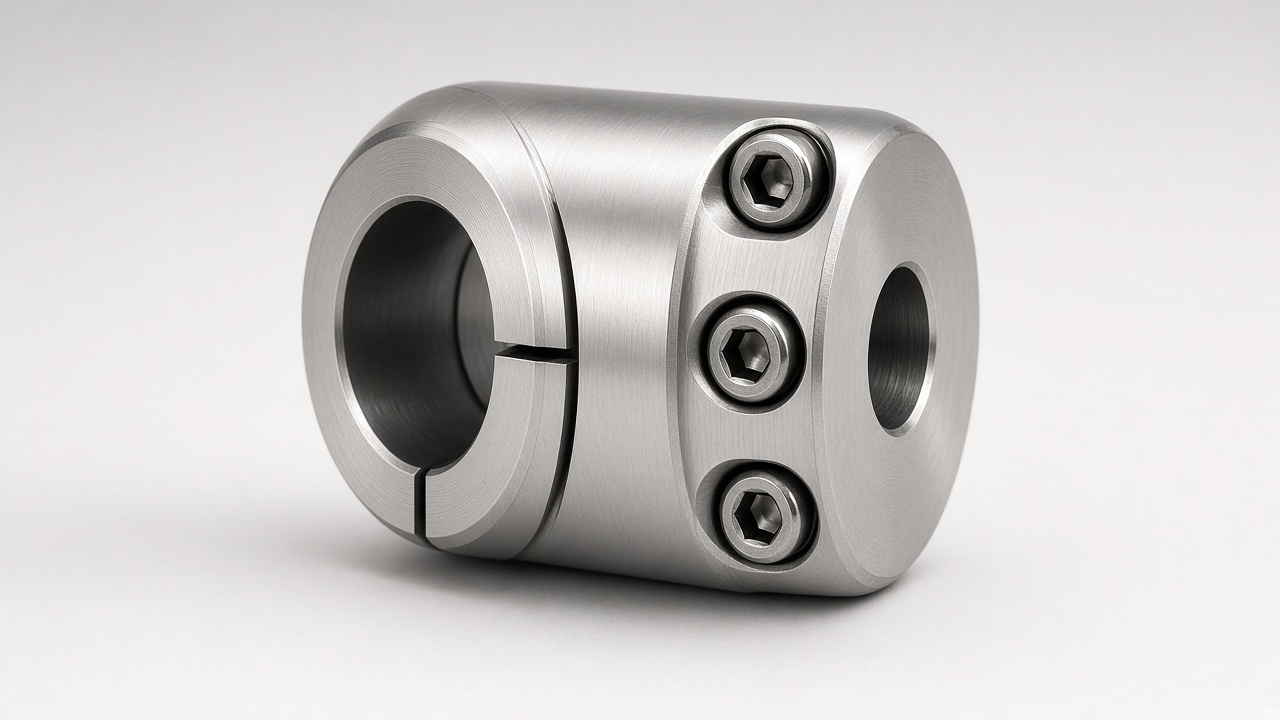

Shaft Couplings
Machined coupling hubs and rigid/flexible connecters that join shafts with accurate bore alignment and key or clamp fit. Suited to servo, stepper, and industrial drive lines where runout and concentricity matter.
Overview
Rigid and clamp-style coupling hubs
Single or dual bore with key or set screw
Bore concentricity for low runout drives
Aluminum for inertia-sensitive servos; steel for torque
Custom OD, length, and flange patterns
Shaft Coupling Specifications
Bores & Features
- • Bore Ø5–Ø50 mm typical
- • Keyway per DIN / ANSI or custom
- • Clamp slits or set-screw bosses
- • Step bore and pilot diameters
- • Flange bolt circles on request
Accuracy
- • Bore tolerance H7 / custom
- • Bore-to-OD concentricity 0.02 mm class
- • Face runout control
- • Keyway width and depth to print
- • Balance for higher RPM optional
Materials
- • 6061-T6 aluminum
- • 1045 / 4140 steel
- • 303 / 304 stainless
- • Anodize or black oxide
- • Lightweight webbed designs
Common Applications
Motion Control
- • Servo motor to ballscrew
- • Stepper to lead screw
- • Encoder stub adapters
- • Gearbox input hubs
- • Test-stand drive links
Industrial Drives
- • Pump and fan shafts
- • Conveyor drive joins
- • Mixer shaft connectors
- • Machine tool auxiliaries
- • OEM replacement hubs
Shaft Coupling Manufacturing Capabilities
Mill-turn and milling for coupling hubs that connect motors and loads with accurate bores—built for mid and small CNC production volumes.
Machining
Mill-Turn Hubs
Keyway & Clamp Features
Finishing
Surface & Balance
Design & Engineering Services
Expert engineering support for your shaft requirements
Coupling Fit Design
- • Bore and key selection
- • Clamp vs set-screw choice
- • Inertia and material advice
- • Misalignment limits guidance
- • Drop-in replacements
Machining Support
- • One-setup mill-turn hubs
- • Keyway broach or mill
- • Prototype then cut list
- • Coatings and marking
- • Incoming inspection samples
Related Shaft Solutions
Custom Shaft
Tailored to exact client specifications with precision engineering and advanced design capabilities. Our custom shafts are engineered to meet your unique application requirements, featuring complex geometries, custom materials, and tight tolerances for optimal performance in specialized equipment and high-performance systems.
Forged Shafts
Enhanced material structure through advanced forging techniques for superior strength and durability. Our forged shafts feature improved grain structure, enhanced tensile strength, and exceptional fatigue resistance, making them ideal for heavy-duty applications in construction equipment, mining machinery, and power generation systems.
Gear Shafts
Expertly designed for seamless gear system integration with precision engineering for optimal performance. Our gear shafts feature custom gear profiles, precision tooth geometry, and advanced surface treatments, ensuring consistent quality and reliable operation in automotive transmission systems, industrial gearboxes, and power transmission applications.
Frequently Asked Questions
Do you make complete flexible couplings or only hubs?
We machine rigid hubs, clamp hubs, and custom connectors. For elastomeric or bellows flex elements we can machine the metal halves to match your chosen insert.
Can bores be different on each side?
Yes. Step bores and dual diameters are common when joining a motor shaft to a different load shaft.
Aluminum or steel for servo couplings?
Aluminum cuts inertia for high-accel servos; steel handles higher torque and abuse. We help choose from your peak torque and RPM.
How do you control runout?
Boring and finishing OD in one setup, plus concentricity checks. Critical hubs can be ground or finish-bored after heat treat if needed.
Lead time for custom hubs?
Simple hubs often 1–2 weeks; anodized or keyed production lots 2–4 weeks depending on quantity.
Custom Shaft Couplings & Hubs
Provide bore sizes, keyways, and OD envelope. We machine rigid hubs and clamp-style connectors that align with your motor and load shafts.
