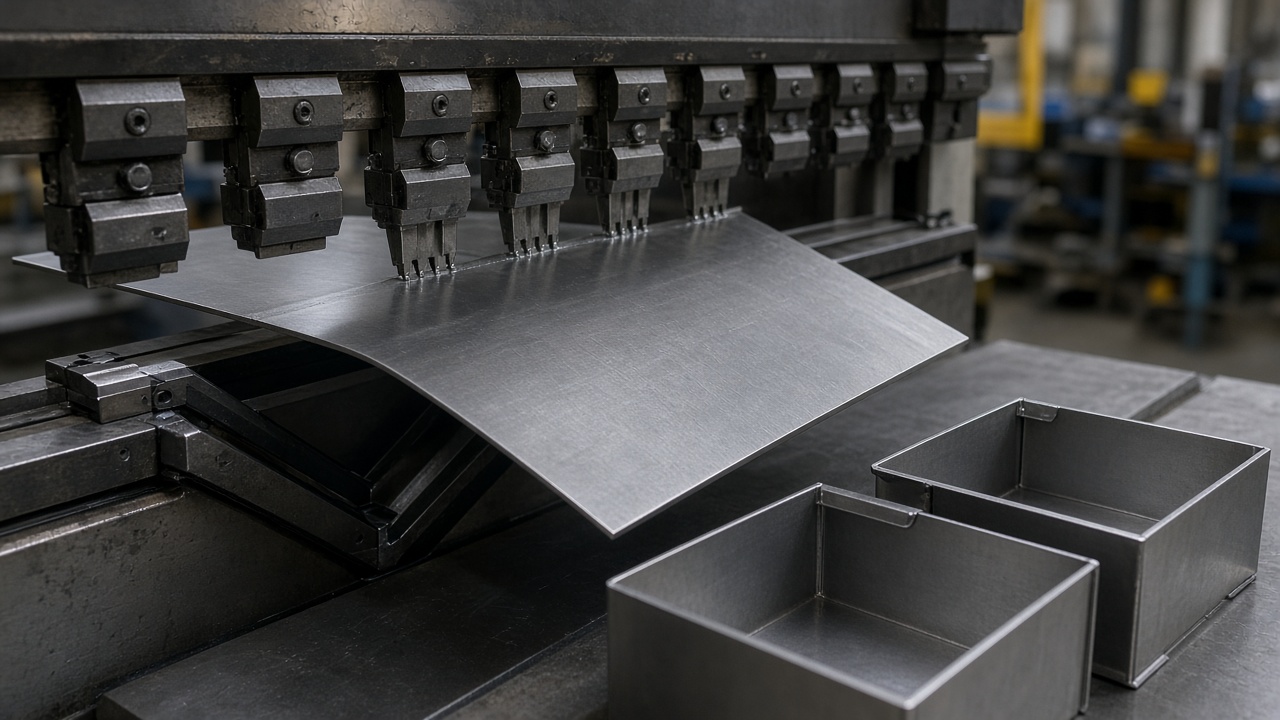

CNC Bending (Press Brake)
Accurate press-brake forming for flanges, boxes, and complex bend sequences. We form laser-cut blanks into enclosures and brackets with DFM on bend reliefs and hole-to-bend spacing.
Core Advantages
Practical reasons buyers choose CNC bending for sheet metal programs.
Angle Control
Programmable brake sequences
Consistent flanges & boxes
- •Multi-bend parts
- •Hem options
- •Offset bends
- •Channel forms
Enclosure Forming
Four-sided boxes
Chassis and covers
- •Corner reliefs
- •Hardware prep
- •Lid fits
- •EMI flange styles
DFM Support
Bend deductions reviewed
Flat pattern confidence
- •K-factor notes
- •Hole-to-bend rules
- •Relief design
- •Springback awareness
Material Range
Steel, SS, aluminum
Common sheet grades
- •CRS
- •304/316
- •5052
- •Thickness per quote
Integrated Flow
Cut → bend → finish
One program continuity
- •Laser blanks
- •PEM after form
- •Powder coat
- •Assembly
Export Ready
China to overseas
Protected formed parts
- •Corner guards
- •Nest packing
- •Kit labels
- •Freight
What we provide for CNC bending
Press Brake Forming
Flanges, channels, and multi-bend sequences.
Prototype bends
First-article angle tune
Production sequences
Frozen bend programs
Hem & curl
Edge treatments when tooled
Enclosure Programs
Boxes with hardware and lids.
Corner design
Reliefs and weld corners
Hardware
PEM after or before coat per process
Fit checks
Lid/body clearance
Secondary
Weld, coat, assemble.
Spot/MIG/TIG
Powder coat
Silk screen
Assembly
Industries & Use Cases
Commercial and industrial sheet metal—soft capability language without overclaimed regulated certifications.
Electronics
Chassis and panels.
- •Boxes
- •Rack parts
- •Brackets
- •Doors
Industrial Controls
Cabinet internals.
- •DIN panels
- •Mount plates
- •Wireways
- •Doors
HVAC / Equipment
Duct flanges and covers.
- •Flanges
- •Guards
- •Pans
- •Frames
OEM Machinery
Guards and formed brackets.
- •Guards
- •Trays
- •Levers
- •Covers
Materials
Common sheet grades; confirm thickness and finish on quote.
Formable Sheets
- • CRS
- • Galvanized
- • 304 / 316
- • 5052 aluminum
Thickness
- • Common thin gauge to mid plate—confirm on RFQ
Quality & Inspection Notes
QC aligned to drawing CTQs and agreed cosmetic class.
Material verification
Grade and thickness checked against order
In-process checks
Profile and bend samples during run
Final inspection
CTQ dims and cosmetics per agreement
Finish verification
Coating / plating notes when ordered
Export packing
Edge protection and carton/pallet for overseas
Our Process
CAD review
Formed model + material/thickness
Flat & bend plan
Reliefs, sequence, and tooling notes
Cut blanks
Laser cut flats
Brake form
CNC bend to angle targets
Finish & ship
Hardware/coat/inspect/pack
Frequently Asked Questions
What bend angles can you hold?
Shop standards apply unless CTQs are marked. Tight cosmetic angles may need sample approval.
Minimum flange length?
Depends on thickness and tooling—too-short flanges are hard to form. We flag on DFM.
Hole distortion near bends?
Holes too close to bends ovalize—follow hole-to-bend guidelines or pierce after form.
Do you unfold my STEP?
Yes—we can derive flats and review K-factor assumptions.
Aluminum cracking?
Some alloys/tempers need larger radii. Share alloy temper.
Hemming?
Available when tooling and thickness allow—ask on quote.
Lead time?
Simple brackets are fast; multi-bend boxes with coat take longer.
Certifications?
Soft capability language only.
CNC bending—service overview
Press-brake forming turns flat sheet into flanges, channels, and enclosures.
Choose CNC bending for prototypes and production formed parts without stamp dies.
Partsproto integrates laser + bend + finish for overseas buyers.
- → Flanged brackets
- → Sheet metal boxes
- → Multi-bend sequences
- → Enclosure pilots
DFM tips for CNC bending
- •Add bend reliefs where flanges meet.
- •Keep hole-to-bend distance adequate.
- •Specify inside radius when critical.
- •Avoid impossible bend sequences—send 3D.
- •Call cosmetic face and grain direction.
Inspection & QC
- ✓Bend angle checks.
- ✓Overall formed dims.
- ✓Flatness on panels when specified.
- ✓First-article photos on request.
Lead time & batch sizing
Prototype brackets often about a week class after DFM; complex coated enclosures longer. Ask for quantity breaks.
Ready to Start Your Next Project?
Send CAD or DXF, material, thickness, finish, and quantity—Partsproto returns DFM notes and export lead time.
